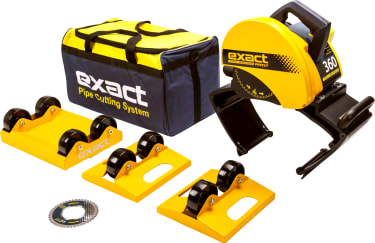

Exact PipeCut 360 Pro Series

Overview

The Exact PipeCut 360 Pro Series is intended for heavy-duty pipe cutting. Suitable for all pipe materials. Portable and easily transportable.

Fast and accurate cutting
Laser indicator ensure precise cutting
Produces minimum sparks—increases safety whilst cutting pipe on the job site.

Quick to set up and easy to use pipe cutting saw, suitable for all pipe materials. Portable and easy to transport. Robust design makes it suitable for heavy-duty use.

Fast and accurate cutting
Cuts all pipe materials
Laser indicator ensures precise cutting
Electronics protect the motor from overload with “traffic lights” to guide the operator
Cuts pipe diameters from 75–360 mm
Up to 2885 r/min
Weight: 17.5 kg
Blades sold separately. Saw only.

MEP Code: 220092

Technical Specifications
Specification	Specification Detail
Voltage	220–240 V / 50–60 Hz or 100–120 V 50–60 Hz
Power	2500 W / 220–240 V or 15 А / 100– 120 V
No-load speed	I (low) = 1900 /min, II (high) = 2885 /min
Blade diameter	140 mm (5.6 ″), 165 mm (6.50 ″), 180 mm (7.2 ″),190 mm (7.6 ″)
Mounting bore	62 mm (2.44 ″)
Weight	17.5 kg
Range of use Ø 360 Pro Series	75–360 mm (3–14 ″)
Max. pipe wall, plastics and other soft materials	50 mm (2.0 ″)
Max. pipe wall 230 V, steel, iron	20 mm / 0.78 ″
Max. pipe wall 120 V, steel, iron	12 mm / 0.5 ″
Vibration, A_{h, M} ”cutting metal”	3.2 m/s²
Vibration uncertainty, K	0.3 m/s²
LpA (sound pressure)	101.0 dB(A)
KpA (sound pressure uncertainty)	3 dB(A)
LWA (acoustic power)	112.0 dB(A)
KWA (acoustic power uncertainty)	3 dB(A)
Recommended generator capacity	4.9 kVA for 230 V, 3 kVA for 100–120 V

The values given are valid for nominal voltages [U] of 230/240 V. For lower voltage and models for specific countries, these values can vary.

Technical Document

Manufacturer's Operating Instructions for Exact PipeCut 360 Pro

Operating Instructions for the 220092 Exact PipeCut 360 Pro Series, 2018-02.

Download

Fast and accurate cutting
Laser indicator ensure precise cutting
Produces minimum sparks—increases safety whilst cutting pipe on the job site.
